Flatlander-IPP Nederland - Wiseco Mini JWC MKII Pistons

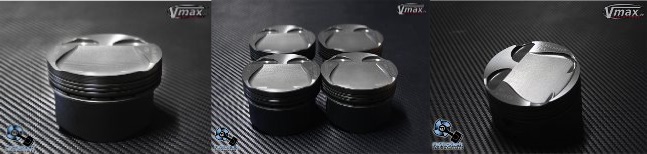

Wiseco Pistons - Mini JWC MKII
Includes: Zylon skirt coating, rings, wrist pins & circlips.

Mini JWC MKII 1.6L 16v Turbo "Prince"
BMW 1 series, 3 series 1.6L 16V Turbo

Together with Dombeck Motorsport we have developed these upgraded Wiseco pistons for the �Prince� engines. David Dombeck became champion in ADAC DTC season 2015, and has several class victories with his Mini JWC.

In an effort to supply better & stronger pistons over standard/OEM, we have added the following "Bullet Proof" upgrades:

"BULLET PROOF" Piston Upgrades
- Special forging used on these pistons
- Upgraded Direct Injection Design, for improve combustion
- 3D Crown milling
- Zylon Skirt coating
- Anodized top on the surface of the pistons (more strength)

Bore sizes: 77.00mm / 77.25mm / 77.50mm

To Order: Please Call 0031-(0)545291505 or Email Anytime

Mini JWC MKII 1.6L 16v Turbo "Prince" BMW 1 series, 3 series 1.6L 16V Turbo
Part #	Bore	Oversizes	Stroke	Rod	C.H.	Head cc's	Dome/Dish Volume	Comp Ratio	Notes	Price
K699M7700	77.00	Std	85.8	138.50	-	-	-	9.2:1	1	�1049
K699M7725	77.25	+0.25mm	85.8	138.50	-	-	-	9.2:1	1	�1049
K699M7750	77.50	+0.50mm	85.8	138.50	-	-	-	9.2:1	1	�1049

Notes:
#1 Most Wiseco pistons have offset pins. Pins must be offset the same as o.e. for quietest operation - Pin offset will be opposite of direction of engine rotation.
Notes: that apply to all Part #'s:
* Some pistons are listed with a range of compression ratio's. The low number is determined w/an un-cut deck and the high number is determined w/.030 piston to cylinder head clearance.
* Always check pistons to valve clearance - If using VTEC or like mechanisms- check w/longer duration higher lift lobe.
* Always run at least .030 piston to head clearance including gasket thickness.
* If piston appears to be different than expected, please do not hesitate to call Wiseco at 800-321-1364 to verify proper installation specifications.
