Supertech Performance Valves (&
Valve Seals)
- High Flow Rates
- Less Friction
- More Power
-
Featuring Black Nitrided Treatment!

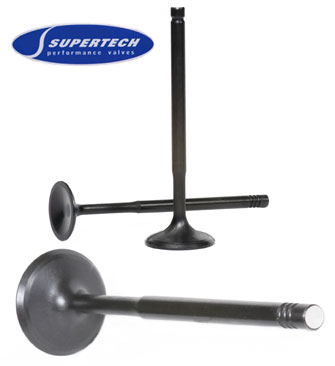

Supertech Extreme Flow Performance Valves
for Pro Street
and Racing are engineered for High RPM and High HP. Extreme Flow
Valves outperform any other valve on the market today, and with
their Nitride Coating are perfect for High Temperatures (and run
cooler which improves value life), Nitrous, Turbos and
Superchargers. For naturally aspirated motors these valves will give you a
much greater cylinder flow for good HP gains.
Manufacturing
Intake and Exhaust Valves are One Piece Forged, High Temperature,
High Nickel, Stainless Steel Alloy. Valves are CNC finished to
strict tolerances making these valves the choice for the most
demanding race classes.
Black Nitride (Coating)
Black Nitride Coating is a hardening treatment that even though it
is not as widely used as the chrome plating, it has several
benefits and has become more popular for use in the European and
Japanese applications.
Benefits of Black Nitride Coating:
- The micro hardness is higher than the
stainless steel base material, keeping good ductility beneath
the hard nitrided layer (micro hardness is 800HV minimum)
- Surface finish is smoother than with chromed
stems, having less friction between the stem and guide.
- Valve seat surface is harder with the
nitrated layer, lasting longer
with lead free fuels, alcohols, nitro, or other "explosive"
mixes.
- Matches any kind of seats (nodular iron
seats, steel powder metal seats, hard aluminum-copper seats or
beryllium copper seats).
- Higher rpm engines take full advantage of all
the previous features.
- The higher the engine speed the bigger the
power loss due to internal engine friction! The black nitride
layer reduces this power loss due to less valve-guide friction.
- The nitrided layer is adhered to the base
material at a microscopic level, so it will not "flake" or bake
when the valves bend due to impacts with the pistons
- The Black Nitride applies to the whole valve
while the chrome coating is only applied to the stem.
- All valves are swirl polished, have stem
undercut, a hardened tip and more.
Chrome (special coating used only as noted) Widely used and known in high performance valves Only applied to
stem.
Inconel Coating (where noted)
For Superior Heat Resistance. |
|
|
Part # |
Description |
Notes |
Type |
Size |
Price/
Valve |
VALVES |
GIVN-0010 |
2.0L/2.2L
Cavalier/Cobalt/Opel/Vauxhall |
Triple Groove |
Intake |
std
(35.10mm) |
€22 |
GEVN-0010 |
2.0L/2.2L
Cavalier/Cobalt/Opel/Vauxhall |
Triple Groove |
Exhaust |
std
(30.10mm) |
€22 |
GIVN-3303F |
C20XE & C20LET Turbo Engines
Opel/Vauxhall |
6.96mm Stem Diameter,
105mm Length, Flat Face |
Intake |
34.00mm
(+1mm) |
€22 |
GEVI-3303F |
C20XE & C20LET Turbo Engines
Opel/Vauxhall |
6.95mm Stem Diameter,
105mm Length , Flat Face,
INCONEL |
Exhaust |
30.00mm
(+1mm) |
€32 |
GIVN-3303F |
Opel C20XE & C20LET |
6.96mm Stem Diameter, 105mm overall length,
Flat Face |
Intake |
34.00mm
(+1mm) |
€22 |
GEVI-3303F |
Opel C20XE & C20LET |
6.95mm Stem Diameter, 105mm overall length ,
Flat Face,
INCONEL |
Exhaust |
30.00mm
(+1mm) |
€32 |
GIVN-3312S |
Opel Z20LER/LEH/LET |
5.96mm stem diameter 102.15mm overall length |
Intake |
32.50mm(+0.50mm) |
€22 |
GEVI-3312S |
Opel Z20LER/LEH/LET |
5.95mm stem diameter 92.30mm overall length
INCONEL |
Exhaust |
29.50mm (+0.50mm) |
€32 |
VALVE SEALS |
VS-OP7I |
Opel C20XE & C20LET |
- |
Intake |
- |
Email |
VS-OP7E |
Opel C20XE & C20LET |
- |
Exhaust |
- |
Email |
|
|
