K1  Connecting Rods
Forged I-Beam & Billet H-Beam Connecting Rods
By K1


Every K1 rod includes ARP 2000 Bolt upgrade!


By Email: Sales@Flatlander-IPP.nl
By Phone: 0031(0)623360358  Mobile
By Phone: 0031 (0) 545291505  Office

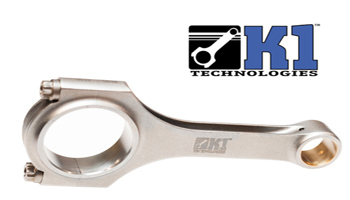

  K1 Connecting Rods
All Sport Compact


I-Beam (I)
Forged 4340 Steel I Beam connecting rods. Shot peened for improved fatigue life. Sizes held to +/- .0001 , finish honed in the USA. Bronze wrist pin bushings. Weight matched +/- 1 gram on each end. (w/ARP fasteners).

H-Beam (H)
Billet 4340 Steel H Beam connecting rods. Closely monitored material mechanical properties for optimum performance. Designed and finish honed in the USA. Sizes held to some of the tightest tolerances in the industry, +/- .0001 and +/- 1 gram per end. Shot peened for improved fatigue life. Bronze wrist pin bushings.
- 2-piece forging for increased strength
- Multi stage heat treated process
- X-rayed and magnafluxed
- Precision alignment sleeves positively locate the
  rod cap maintaining perfect alignment
- Exclusively using ARP 2000 fasteners.

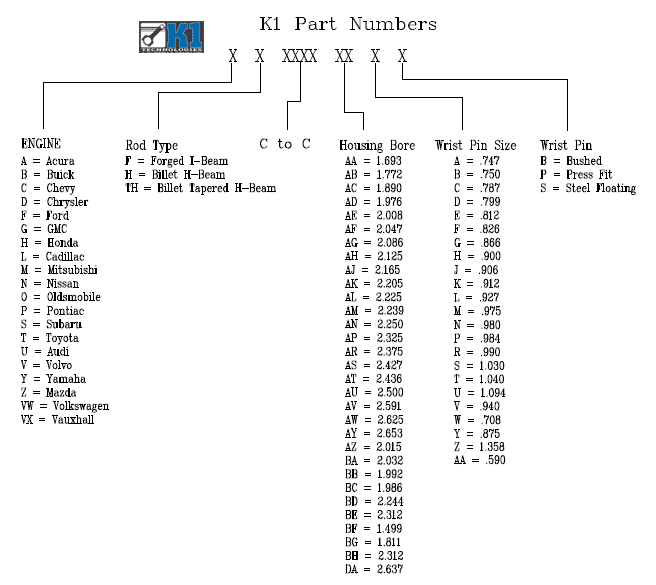

Part # Key: Click Here [opens in new window]

CALL: There's lots of new rods available - you'll see "CALL" in the price/order columns. We do have these available now and are working on getting them added online. Please call the Sales Dept. to order: + 31 (0)6-23360358
Model Rod Type Part #
[Part # KEY]
Length Weight Notes Price/
Set
Buy Now
ACURA
D17 H HH5394ACAB4-A 5.394 463 - 459
B18A/B H HH5394ACFB4-A 5.394 501 - 459
B18C H HH5433ACFB4-A 5.433 500 - 459
S2000/K24 H HH5646AEGB4-A 5.646 526 Conversion Rod 459
H22 H HH5636AEGB4-A 5.636 530 - 459
FIT H HH5865AAWB4-A 5.865 361 1.5 16V I-tec 459
K24 I HI5985AEGB4 5.985 454 - 459
ALFA ROMEO
105, 2.0L H ARH6181BTGB4-A - - - 459
AUDI
Audi H UH5669BBCB5-A 144mm - - 679
BMW
Stock dimension fitment for BMW M52, M54, S50 & S52 engines H BMW5315ACGB6-A 5.315 - big end bore 1.890, pin 22mm 679
CHRYSLER/DODGE
2.2/2.5L turbo H DH5945AGHB4-A 5.972 606 Bushed w/.901 pin 459
SRT-4 H DH5945AGGB4-A 5.945 573 3/8" bolt (Bushed) 459
Caliber H DH5618AEGB4-A 5.618 545 - 459
CITROEN/PEUGEOT
TU5JP4 H PEH5260BLCBB4-A 5.260 499 1.6 459
FIAT/LANCIA
Lancia HF integrale 16V Turbo Fiat Coupe 2.0L 16V Turbo H FLH5709AHGB4-A 145mm - - 459
FORD
Duratec 3.0L H FH5440AGFB6-A 5.440 535 - 679
Duratec 1.8 & 2.0 H FH5758BRFB4-A 5.758 510 21mm pin 459
Duratec 2.3 H FH6094AGFB4-A - - - 459
Pinto H FH5700AHLB4-A 5.700 507 Pinto Rod 2.000" Chevy Journal 459
Ford Probe (KL)
Mazda Millennia S (KL)
H FH5426AKFB6
(Chrome Moly H-Beam)
stock 588 Fits: KL engine
Millennia S pin (21mm),
ARP 2000 rod bolts, good for 10,000 RPMS & 900HP.
For use in N/A or turbo applications
679
Ford DOHC H FH5878AHCB4-A - - - 459
Ford OHC H FH5000AJABB4-A - - - 459
HONDA
D17 H HH5394ACAB4-A 5.394 463 - 459
B16A H HH5287ACFB4-A 5.287 495 - 459
B18A/B H HH5394ACFB4-A 5.394 501 - 459
B18C H HH5433ACFB4-A 5.433 500 - 459
S2000/K24 H HH5646AEGB4-A 5.646 526 Conversion Rod 459
S2000 H HH5440AEWB4-A 138.2mm - - 459
S2000 H HH6210AEWB4-A 157.73mm - - 459
S2000 H HH6260AEGB4-A 159mm - - 459
H22 H HH5636AEGB4-A 5.636
143.15mm
530 - 459
FIT H HH5865AAWB4-A 5.865 361 1.5 16V I-tec 459
K20 N/A H HH5472AEGB-L4-A 5.472 460 Lightweight 459
K20 Turbo H HH5472AEGB4-A 5.472 511 - 459
K24 I HI5985AEGB4 5.985 454 - 459
K24 H HH5985AEGB4-A 5.985 542 - 459
Honda H HH5780ACWB4-A146.8mm - - 459
Honda H HH5800ACFB4-A147.3mm - - 459
Honda H HH5800AEFB4-A147.3mm - - 459
Honda H HH5805AEFB4-A147.45mm - - 459
Honda H HH6025AEJB4-437-A153mm - - 459
Honda H HH6025AEJB4-A153mm - - 459
Honda H HH6225ACFB4-A158.12mm - - 459
HYUNDAI
2.0L Genesis H HYH5748AEGB4-A 5.748 540 - 459
3.8L Genesis H HYH5886BPGB6-A 5.886 572 - 459
MAZDA
Duratec 3.0L H FH5440AGFB6-A 5.400 535 - 679
Duratec 1.8 & 2.0 H FH5758BRFB4-A 5.758 510 21mm pin 459
MX5 & BP H ZH5234ACCB4-A 5.234 490 - 459
MX5 H ZH5155ACCB4-A 131mm - - 459
FS-DE H ZH5315AEAB4-A 5.315 533 - 459
FS-DE H ZH5400AEAB4-A 5.400 536 - 459
Ford Probe (KL)
Mazda Millennia S (KL)
H FH5426AKFB6
(Chrome Moly H-Beam)
stock 588 Fits: KL engine
Millennia S pin (21mm),
ARP 2000 rod bolts, good for 10,000 RPMS & 900HP.
For use in N/A or turbo applications
679
Mazda Speed 6 (22mm pin) H ZH5927AJGB4-A 5.927 555 - 459
Mazda Speed 6 (22.5mm pin) H ZH5927AJAFB4-A 5.927 552 - 459
Mazda H ZH5155AECB4-A 131mm - - 459
MERCEDES BENZ
2.3L 16V EVO 1
(enginecode:M102E23)
2.5L 16V EVO 2
(enginecode: M102E25)
H MBH5866BAGB4-A 145mm - - 459
MITSUBISHI
4G63 H MH6378ACGB4-A 162mm - - 459
4G63 GEN 1 H MH5906ACFB-L4-A 5.906 533 Lightweight 459
4G63 Gen 2 H MH5906ACGB4-A 5.906 595 - 459
4G63 Gen 2 H MH5906ACGB-L4-A 5.906 530 Lightweight 459
4G63 Gen 2  H MH6142ACGB-L4-A 156mm - Lightweight / Long 459
4G93 H MH5250ACAB4-A 5.250 483 - 459
4G94 H MH6025ADAB-L4-A 6.025 486 Lightweight 459
EVO X 4B11 H MH5658AJJB4-A 5.658 540 - 459
NISSAN
RB25 H NH4783AEFB6-A 4.783 498 - 679
SR20 H NH5364AEGB4-A 5.364 524 Bushed 459
VQ35 H NH5676AJGB6-A 5.676 538 - 679
VQ35 H NH5700BDBB6-A 144.8mm - - 679
VQ37 H NH5886BDGB6-A 149.5mm - - 679
VQ42DE H NH5600AJGB6-A 142.25mm - - 679
VQ45 H NH5700BDGB6-A 144.8mm - - 679
KA24DE H NH6495AGFB4-A 6.495 624 - 459
CA16DE/CA18DE H NH5231ACCB4-A 5.231 550 - 459
QR25DE H NH5630ACCB4-A 5.630 - Turbo and N/A applications 459
OPEL
Opel 2.0L
C20NE/XE/LET
Z20LET / LER / LEH
H VX5634AFFB4-A 5.634/
143 mm
- - C20NE 2.0L 8V
- C20XE 2.0L 16V
- C20LET 2.0L 16V Turbo engine
- Z20LET / LER / LEH
Bushed
459
16V 1598cc H OPH5110BGWB4-A - 426 X16XE 459
16V 1598cc DOHC H OPH5106BGAB4-A 5.106 423 Z16X - Z16L
(made for N/A and Turbo)
459
Opel 16V 1.6L   VXH5108BGWB4-A 129.75mm - - 459
Opel 16V 2.0L   VX5634AFFB4-A 143 mm - - 459
PEUGEOT/CITROEN
TU5JP4 H PEH5260BLCBB4-A 5.260 499 1.6 459
Peugeot 206 (RS) and Citroen C4 EW10J4 H PEH5472BLFB4-A 139mm - - 459
XU10J4 405 MI16V H PEH5984BTJB4-A 152mm - - 459
RENAULT
F7 1.8/2.0 H RH5669BAFB4-A 144mm - - 459
SUBARU
EJ18/20/25 H SH5137AJJB4-A 5.137 568 DOHC 459
EJ25 Non-Turbo H SH5180AJJB4-A 5.180 547 SOHC 459
TOYOTA
3TC, 2TGEU H TH4850AEGB4-A 4.850 529 - 459
2AZ-FE
(Scion Tc, xB, RAV4, Camry)
H TH5886AEGB4-A 5.886 615 - 459
2JZGTE H TH5590AJGB6-A 5.590 562 - 679
VAUXHALL / OPEL
Opel 2.0L
C20NE/XE/LET
Z20LET / LER / LEH
H VX5634AFFB4-A 5.634/
143 mm
- - C20NE 2.0L 8V
- C20XE 2.0L 16V
- C20LET 2.0L 16V Turbo engine
- Z20LET / LER / LEH
Bushed
459
16V 1598cc H OPH5110BGWB4-A - - X16XE 459
16V 1598cc DOHC H OPH5106BGAB4-A 5.106 423 Z16X - Z16L
(made for N/A and Turbo)
459
Opel 16V 1.6L   VXH5108BGWB4-A 129.75mm - - 459
Opel 16V 2.0L   VX5634AFFB4-A 143 mm - - 459
VW
Golf 1.8L H VW5669BBCB4-A 5.669 514 Bushed 459
ABF H VW6260BBFB4-A 6.260 565 High Block 459
VW 1.3 Ltr 8V G60
Engine Code PY
H VWH4803ABCB4-A 122 mm - - 459
VW 1.8L 8V G60
(engine code: PG)
VW Corrado G60 and Golf II G60
VW 1.6L 16V conversion rod for 1.8L into 1.6L engine 22mm wristpin
H VWH5354BBGB4-A 136 mm - - 459



No high import / shipping costs and fees anymore.
Just order the parts here at Flatlander Performance Parts in the Netherlands.



All prices on website are without (exclude) salestax of 21 percent; MWST of 21 percent; BTW of 21 percent
